Monday, April 18, 2016

What's the difference between Cat5E and Cat6 Cable?

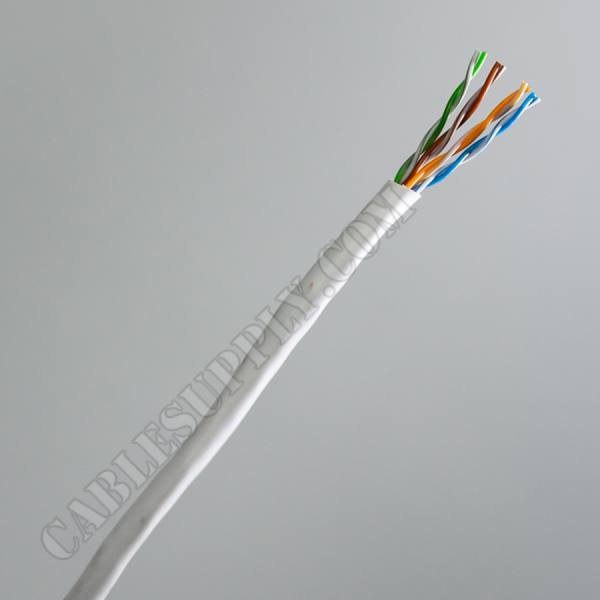

Cat5E Computer Cable

Category 5E Cable is Network Ethernet cabling that consists of four twisted pairs of copper wire terminated by RJ45 connectors. While the base standard set by TIA/EIA for cat5E is 100 MHz, our cat5E cable supports frequencies up to 350 MHz and for 10/100/1000 Base-T Ethernet. Additionally, Cat5E Ethernet cable can be used for voice, video, data, ATM, token ring, and direct networking. Cat5E cable runs should be limited to a maximum length of 328 feet (100 meters). Currently, cat5E is the standard for data cabling communication with cat6, cat6A, and cat7 being faster.

Browse CAT5E Cable @ cablesupply.com






Cat5E Cable Product Details:

  • Cat5E Cable Standards provide a performance rate of 350 MHZ
  • Cat5E Cable is suitable for Gigabit Ethernet, telephony and video signals
  • High-performance data communications cable for noisy environment
  • PVC is Designed for indoor installations aka CMR Riser Cable
  • CMX Outdoor Cable is UV Jacketed Cable
  • Plenum is fire rated Jacketed Cable
  • Excellent attenuation and crosstalk characteristics
  • Standards: EIA, TIA 568 B.2-1, UL, CSA, ISO, IEC 11801, UL/cUL, ETL


Cat6 Computer Cable

Category 6, Cat-6 network cabling is used as the cabling infrastructure for 10BASE-T (Ethernet), 100BASE-TX (Fast Ethernet), 1000BASE-T (Gigabit Ethernet, or GbE) and 10GBASE-T (10-Gigabit Ethernet, or 10 GbE) networks. The Cat 6 standard provides performance of up to 500 MHz for the newer Cat6 standards and can be used up to a maximum length of 100 meters (55 meters for 10GBASE-T networks).

The Cat 6 standard was first released in 2002 as part of the Telecommunications Industry Association’s TIA/EIA-568-B.2-1 document specification. Cat 6 is backward compatible with the Cat 3, Cat 5 and Cat 5e cable standards, and as with Cat 5 and Cat 5e cabling, Cat 6 cables consist of four unshielded twisted pairs (UTP) of copper wire terminated by RJ45 connectors.

In addition to its support for higher performance than the Cat 5 specification, the Cat 6 standard also includes more stringent specifications for crosstalk and system noise. While Cat 6 is expected to supersede both Cat 5 and Cat 5e cabling in the future, all three types of cables continue to be popular for use in network installations.

Browse CAT6 Cable @ cablesupply.com

Cat6 Cable Product Details:

  • High-performance data communications cable for noisy environment
  • Suitable for up to 600MHz high-speed data applications
  • Gigabit ethernet, fast ethernet and 155Mbps TP-PMD/CDDI
  • PVC is Designed for indoor installations aka CMR Riser Cable
  • Outdoor Cable is UV CMX Jacketed Cable
  • Plenum is fire rated Jacketed Cable
  • Excellent attenuation and crosstalk characteristics
  • Standards: EIA, TIA 568 B.2-1, UL, CSA, ISO, IEC 11801, UL/cUL, ETL


History:

Cat-6 network cabling is used as the cabling infrastructure for 10 BASE-T (Ethernet), 100 BASE-TX (Fast Ethernet), 1000 BASE-T (Gigabit Ethernet, or GbE) and 10 GBASE-T (10-Gigabit Ethernet, or 10 GbE) networks. The Cat 6 standard provides performance of up to 500 MHz for the newer Cat6 standard and can be used up to a maximum length of 100 meters (55 meters for 10GBASE-T networks). Cat 6 standards were first released in 2002 as part of the Telecommunications Industry Association’s TIA/EIA-568-B.2-1 document specification. Cat6 is backward compatible with the Cat 3, Cat 5 and Cat 5e cable standards, and as with Cat 5 and Cat 5e cabling, Cat 6 cables consist of four unshielded twisted pairs (UTP) of copper wire terminated by RJ45 connectors. In addition to its support for higher performance than the Cat 5 specification, the Cat 6 standard also includes more stringent specifications for crosstalk and system noise. While Cat 6 is expected to supersede Cat5e cabling in the future, Cat 5e types of cable continue to be popular for use in network installations.

The difference between Cat 5e and Cat6 Ethernet Cable:

Cat6 cable is more reliable at higher speeds than Cat5e. Cat 6 is backward compatible with Cat 5e, so you can mix and match, but they are different on the inside, where it counts. If you mix them, you’ll never reach the full performance level you would if you used only cat6 cable, cat6 jacks, cat6 mod plugs and cat 6 patch panels. Until recently, most home and office routers supported lower speeds, so Cat6 wasn't necessary, however Gigabit Ethernet routers have now become more common. Both Cat5e and cat6 cables can both work with Gigabit Ethernet. Cat 5e cable is enhanced to reduce interference so that it can reliably deliver gigabit speeds. However, Gigabit Ethernet still pushes cable to its limits so cat6 may be the preferred choice. Cat6 cable is certified to handle Gigabit speeds, it's meant to handle it and it does. It's also suitable for 10-Gigabit although at that point, you're pushing the limits of Cat6. Cat6 cable also has more stringent specifications for crosstalk and system noise than Cat 5e does. That means you'll get fewer errors on a system operating via Cat6.

Thursday, April 14, 2016

CAT5E VS. CAT6 Ethernet Cable

Cat6 cable is more reliable at higher speeds than Cat5e. Cat6 is backward compatible with Cat5e, so you can mix and match, but they are different on the inside, where it counts so if you mix them you’ll never reach the full performance level you would if you used only cat6 cable, cat6 jacks, and cat6 mod plugs and cat 6 patch panels. Until recently, most home routers supported speeds of 10 or 100 megabits per second. However, Gigabit Ethernet routers have become more common. Cat5e and cat6 cables can both work with Gigabit Ethernet. Cat 5e cable is enhanced to reduce interference so that it can reliably deliver gigabit speeds. However, Gigabit Ethernet still pushes the cable to its limits.

Cat 6 cable is certified to handle Gigabit speeds, it's meant to handle it and it does. It's also suitable for 10-Gigabit although at that point, you're pushing the limits of Cat 6. Cat 6 cable also has more stringent specifications for cross-talk and system noise than Cat 5e does. That means you'll get fewer errors on a system operating via Cat 6. >> Browse Cat6 Cable @ cablesupply.com

HDMI to DVI Cable


HDMI and DVI Cables

HDMI to DVI Cable hooks up to your computer, monitor, or projector, but it’s important to look at what type of output ports your computer supports first. Most projectors and displays have multiple input ports. There are multiple standards of computer video cables. Three of them still have a spot on most laptop’s side. These are VGA, DVI and HDMI.

CableSupply.com offers this HDMI to DVI Cable for your audio visual needs. Check it out! Optimized HDMI-to-DVI cables that are specially designed for hi-definition (HDTV) video/audio signals in professional and home theater installations. All of our cables are made for home theater in mind using the highest quality cabling, jacket materials, and gold plating for better connectivity, longevity and signal strength. Every optimized Cable is compatible with all HDTV formats, including 720i and 1080p.

Special Note: Many Hi-Def cable boxes that have a DVI “out” do not work for connection to a plasma or LCD television. Many cable companies claim that these DVI outs are for computer use only. Before you purchase, make sure that the DVI connection on your cable box actually works and can be connected to a HD plasma television.

MORE INFO:

VGA

VGA, or Video Graphics Array was first produced in 1987. Despite being slightly outdated, VGA is still featured on a lot of computers because it’s widely used in the computer and display market in terms of a computer video standard. VGA cables carry an analog signal as opposed to a digital one. Using higher frequencies, it’s possible to reach a relatively high range of video resolutions. However, video quality directly responds to cable quality, and doubly so on higher resolutions. Due to this, the quality of a VGA image can variate notable across different makes of cables. VGA connectors features fifteen pins spread over three horizontal rows and has a trapezoid shape. Note: The color blue is often associated with VGA ports and connectors.

DVI

DVI can be considered one of VGA’s successors. The connector is appearing more and more on computers and displays, especially on higher-end graphics card and high-resolution computer displays. There are multiple types of DVI connectors, with exception of the least used DVI-A connector, all of them work with uncompressed digital video. This means that the picture quality is not heavily dependant on the quality of cable. The difference is in the lay-out of the pins. DVI-D is characterised by the single flat blade on one side of the connector, showing no pins above or below the blade. DVI-D is for the sole transmission of digital video. DVI-I looks very similar to DVI-D, but does have four pins surrounding the flat blade. These pins carry an analog signal, for compatibility with the VGA standard. This makes DVI-I connectors able to carry a digital and analog signal. DVI-D and DVI-I connectors come in two additional styles. Single-link; misses a section of pins in the middle of the connector. Dual-link connectors feature a single block of pins (three times eight), which allows to reach much higher resolutions.

HDMI

If DVI is the successor to VGA, HDMI is a possible successor to DVI. DVI is almost always located on high definition televisions and so is HDMI. Thanks to this compatibility with newer t.v.s, and its compact size compared to DVI, the HDMI connector is increasingly showing up in computers and computer displays as well. HDMI, like DVI, is designed for the digital transmission of uncompressed data. However, besides a video signal, HDMI can also carry up to eight channels of compressed or uncompressed digital audio.

>> Purchase HDMI to DVI Cable @ cablesupply.com

Friday, April 8, 2016

Arlington Low Profile TV Box Low Power and Low Voltage Electrical Box

Arlington Low Profile TV Box Low Power and Low Voltage Electrical Box TVL508

Arlington Low Profile TV Box for Shallow Walls, 8-Inch x 5-Inch Box, 1/2-Inch or 5/8-Inch Drywall. Used for installation of flat screen TVs (LCD, LED, Plasma). Suitable for shallow drywall depths of 1/2-Inch or 5/8-Inch, box depth is 1.25-Inch. Includes (1) TVL508 box and UL Listed Decorator style receptacle. Save time with retrofit or new construction with convenient low-profile recessed 8" x 5" TV bridge kit. White trim is paintable, allowing for a complete finish. May be used with stud sizes: 2 x 2, 2 x 3, 2 x 4, or Larger, ETL Listed. cUL Listed, industry standards for safety and quality. Made In USA. Arlington Low Profile TV Box for Shallow Walls, 8-inch x 5-inch Box, 1/2-inch or 5/8-Inch Drywall CableSupply.com's Low Profile Power and Low Voltage TV Box is ideal for flat screen TV installations on 1/2" or 5/8" sheetrock with wall depths 3/4" and bigger. Capabilities in new work or retrofit include: • Furring strips on block walls • 2x2, 2x3 and 2x4 or larger studs. >> Purchase Arlington Low Profile TV Box @ CableSupply.com
